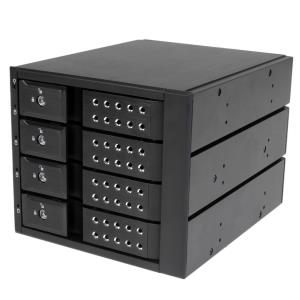

HDD Trayless Mobile Rack Backplane 4 Bay 3.5in SATA / SAS
Brand:
STARTECH.COM
Part Number:
HSB4SATSASBA
Stock:
£81.16
(Excl VAT)
£97.39
(incl. VAT)
| Introduction | |
|---|---|
| The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure. The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps - Flexible drive options with support for both SATA and SAS drive interfaces - Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan |
|
| Packaging data | |
| Package width | 254 mm |
| Package depth | 169 mm |
| Package height | 185 mm |
| Package weight | 1.59 kg |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 531 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 288 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Sustainability certificates | RoHS |
| Features | |
| Hot-swap | Y |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Key lock | Y |
| Product colour | Black |
| Material | Aluminium |
| Certification | CE, FCC |
| Ports & interfaces | |
| External SATA ports quantity | 4 |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 197 mm |
| Height | 124 mm |
| Weight | 1.3 kg |
| Packaging content | |
| Cables included | SATA |
| Screws included | Y |
| Manual | Y |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
