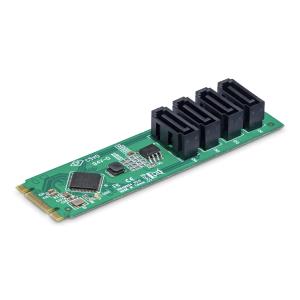

Expansion Card - 4-port M.2 To SATA Adapter Card, M.2 Pci-e 3.0 To SATA HDD/SSD
Brand:
STARTECH.COM
Part Number:
4P-SATA-M2-ADAPTER
Stock:
£28.39
(Excl VAT)
£34.07
(incl. VAT)
| Introduction | |
|---|---|
| Install four SATA drives via one M.2 slot for a high-density storage solution Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive. Cost-Effective Storage Expansion This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation. Compatibility The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces. Applications This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required. ASMedia ASM1064 Chipset The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0. Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots Note: Not compatible with SATA-based M.2 drive slots The StarTech.com Advantage |
|
| Logistics data | |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 306 mm |
| Ports & interfaces | |
| Host interface | M.2 |
| Output interface | SATA |
| Expansion card standard | PCI 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Design | |
| Internal | Yes |
| Product colour | Green |
| LED indicators | Power |
| Mean time between failures (MTBF) | 68555579 h |
| Hot-swap | Yes |
| Features | |
| Chipset | ASMedia ASM1064 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 11 mm |
| Weight | 8 g |
| Packaging data | |
| Cables included | SATA |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 142 g |
