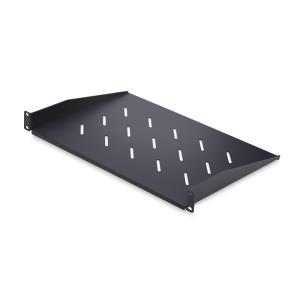

1u Server Rack Shelf Vented- 12in Depth Cantilever Tray 25lb Max
Brand:
STARTECH.COM
Part Number:
CABSHELFV1U-12-RACK
Stock:
£24.85
(Excl VAT)
£29.82
(incl. VAT)
| Introduction | |
|---|---|
| Add a sturdy, vented rack tray to a standard 19in server rack or cabinet This 1U vented rack shelf provides 12.4" (31.5cm) of usable depth for mounting equipment in any EIA-310-compliant 19-inch rack or cabinet. The vented design helps to improve airflow and maintain optimal temperatures for the mounted equipment. The cantilever tray includes cage nuts and screws for quick deployment. Heavy-Duty The fixed-rack shelf is made of 16-gauge (1.4mm) SPCC steel for long-term durability and rigidity while supporting up to 25lb (11.3kg) of equipment. Accommodate server rack equipment, accessories, or non-mountable devices for ease of access and connectivity. Maximize Ventilation The large venting holes on the shelf surface enable improved airflow to dissipate heat and help maintain optimal equipment temperatures. The StarTech.com Advantage |
|
| Features | |
| Type | Rack shelf |
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 11.3 kg |
| Rack capacity | 1U |
| Compliance industry standards | EIA/ECA-310-E |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 315 mm |
| Height | 54 mm |
| Material thickness | 1.4 mm |
| Weight | 3 kg |
| Packaging data | |
| Package width | 547 mm |
| Package depth | 381 mm |
| Package height | 115 mm |
| Package weight | 3 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Screws included | Yes |
| Screw type | M5 |
| Number of screws | 4 |
| Cage nuts included | Yes |
| Number of cage nuts | 4 |
| Logistics data | |
| Master (outer) case width | 547 mm |
| Master (outer) case length | 381 mm |
| Master (outer) case height | 115 mm |
| Products per master (outer) case | 1 pc(s) |
