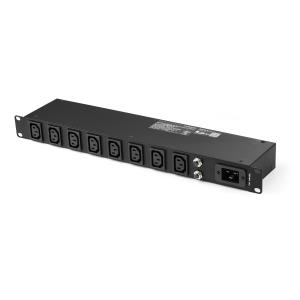

Power Distribution Unit 1u C13 Power Outlets - Server Rack Pdu
Brand:
STARTECH.COM
Part Number:
PDU08C13GB
Stock:
£34.80
(Excl VAT)
£41.76
(incl. VAT)
| Introduction | |
|---|---|
| This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mounted equipment. Sleek, professional installation Unlike some rack power solutions that mount awkwardly if at all, this rack-mount PDU is EIA-310D compliant which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle. Flexible power solution For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack. Protects your equipment In the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damages to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected. The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment. |
|
| Design | |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Features | |
| Surge protection | Y |
| Cable length | 3 m |
| Logistics data | |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 567 mm |
| Master (outer) case height | 164 mm |
| Products per master (outer) case | 4 pc(s) |
| Power | |
| Nominal input voltage | 110 - 240 V |
| Maximum current | 16 A |
| Output voltage | 240 V |
| Load capacity | 3120 VA |
| Maximum total current draw per phase | 16 A |
| Surge energy rating | 3600 J |
| Circuit breaker | Y |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 100 mm |
| Height | 44 mm |
| Weight | 2 kg |
| Packaging data | |
| Package weight | 2.2 kg |
| Package width | 190 mm |
| Package depth | 550 mm |
| Package height | 82 mm |
| Packaging content | |
| Cables included | AC |
| Manual | Y |
| Screws included | Y |
| Number of screws | 4 |
| Screw nuts included | Y |
| Number of screw nuts | 4 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Y |
| Sustainability certificates | CE, RoHS |
