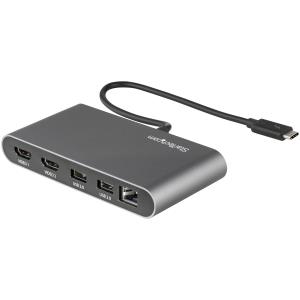

Thunderbolt 3 Mini Dock - Portable Dual Monitor Tb3 Laptop Docking Station Hdmi 4k 60hz - 2x USB-a & Gbe - 11in (28cm) Cable
Brand:
STARTECH.COM
Part Number:
TB3DKM2HDL
Stock:
£60.95
(Excl VAT)
£73.14
(incl. VAT)
| Introduction | |
|---|---|
| Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-AThis certified ThunderboltT 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).Create a Dual-4K 60Hz WorkstationGreat for editing 4K video or other Ultra HD tasks, this portable ThunderboltT 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single ThunderboltT 3 port. Run resource-demanding applications on two independent displays without draining system resources.Connect your laptop to:- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)Compact Size & 11-Inch Attached Host CableAt just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.The Ports You Need Most- 1x USB 3.2 Gen 1 Type-A port (5Gbps)- 1x USB 2.0 Type-A port- 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)Ideal for Power-Demanding Workstation SetupsAs many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.This bus-powered TB3 mini dock is ideally suited for those users, providing full ThunderboltT 3 docking station performance and functionality, while their workstation laptops are separately charged.The TB3DKM2HDL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage | |
| Ports & interfaces | |
| DC-in jack | No |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 2 |
| Microphone in | N |
| Power | |
| Wireless charging | No |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Y |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Performance | |
| Card reader integrated | N |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Grey |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 124 mm |
| Height | 27 mm |
| Weight | 147.8 g |
| Packaging data | |
| Package width | 139 mm |
| Package depth | 195 mm |
| Package height | 37 mm |
| Package weight | 270 g |
| Packaging content | |
| Manual | Y |
| Logistics data | |
| Products per master (outer) case | 24 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 437 mm |
| Master (outer) case height | 270 mm |
| Other features | |
| Cable length | 0.28 m |
| Chipset | Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210 |
