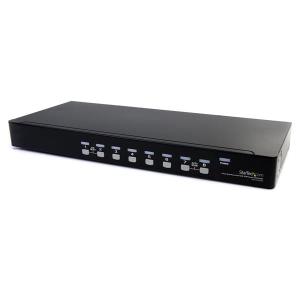

KVM Switch Rack Mount USB Vga / W Audio 8 Port
Brand:
STARTECH.COM
Part Number:
SV831DUSBAU
Stock:
£352.67
(Excl VAT)
£423.20
(incl. VAT)
| Introduction | |
|---|---|
| The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports. Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary. To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - Rugged, rack mountable 1U metal chassis is ideal for any environment - User friendly access through the OSD saves configuration time and frustration - Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver |
|
| Logistics data | |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 610 mm |
| Master (outer) case height | 409 mm |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Sustainability | |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| Headphone outputs | 8 |
| Number of microphone inputs | 8 |
| DC-in jack | Y |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | Y |
| Daisy chain | Y |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Cascadable | Y |
| LED indicators | Y |
| Certification | CE, FCC, UL |
| Display | |
| On Screen Display (OSD) | Y |
| Power | |
| AC input voltage | 110-240 V |
| Input current | 1.8 A |
| Output voltage | 12 V |
| Output current | 4 A |
| Power consumption (typical) | 48 W |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 540 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.6 kg |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 591 mm |
| Package height | 264 mm |
| Package weight | 4.7 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Y |
| AC adapter included | Y |
| Rubber feet | Y |
| Other features | |
| Audio support | Y |
| IP control | N |
| Technical details | |
| Sustainability certificates | RoHS |
