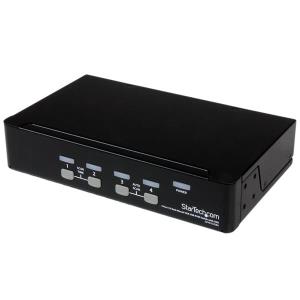

KVM Switch 4 Port 1u Rack Mount USB With Osd
Brand:
STARTECH.COM
Part Number:
SV431DUSBU
Stock:
£149.91
(Excl VAT)
£179.89
(incl. VAT)
| Introduction | |
|---|---|
| Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor). Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options. Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver - On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security - Absolutely no software or drivers required providing a completely OS independent KVM solution |
|
| Logistics data | |
| Master (outer) case width | 551 mm |
| Master (outer) case length | 439 mm |
| Master (outer) case height | 258 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Sustainability | |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | N |
| Mouse port type | N |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 5 |
| Console ports | USB A,VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Audio connections | N |
| DC-in jack | Y |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | Y |
| Daisy chain | Y |
| Design | |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Hot keys | Y |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, FCC, TAA, REACH |
| Display | |
| Built-in display | N |
| On Screen Display (OSD) | Y |
| Power | |
| AC input voltage | 110 - 240 V |
| Input current | 0.2 A |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| External power adapter | Y |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 43 mm |
| Weight | 957 g |
| Packaging data | |
| Package width | 411 mm |
| Package depth | 215 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |
| Packaging content | |
| Manual | Y |
| AC adapter included | Y |
| Rubber feet | Y |
| Other features | |
| Audio support | N |
| IP control | N |
| Technical details | |
| Sustainability certificates | RoHS |
