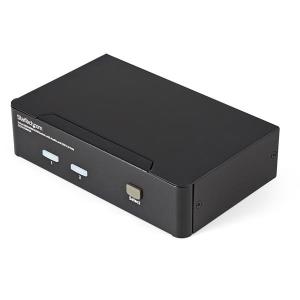

KVM Switch 2 Port USB/ Hdmi With Audio And USB 2.0 Hub
Brand:
STARTECH.COM
Part Number:
SV231HDMIUA
Stock:
£160.99
(Excl VAT)
£193.18
(incl. VAT)
| Introduction | |
|---|---|
| Share a keyboard, mouse and HDMI monitor between 2 multimedia computers The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone). A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases. Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers. The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC - Versatile audio support for both HDMI audio and 3.5mm analog audio - Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices |
|
| Logistics data | |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 342 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 4 |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | N |
| Design | |
| Rack mounting | N |
| Product colour | Black |
| Mean time between failures (MTBF) | 126813 h |
| Certification | R0HS |
| Display | |
| On Screen Display (OSD) | N |
| Power | |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 70 mm |
| Height | 40 mm |
| Weight | 634 g |
| Packaging data | |
| Package width | 188 mm |
| Package depth | 250 mm |
| Package height | 100 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| Manual | Y |
| AC adapter included | Y |
| Rubber feet | Y |
| Other features | |
| Connectivity technology | Wired |
| I/O ports | 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F) |
| Dimensions (WxDxH) | 124.8 x 70 x 40 mm |
| Ports quantity | 2 |
| Power requirements | AC 110 - 240 V |
