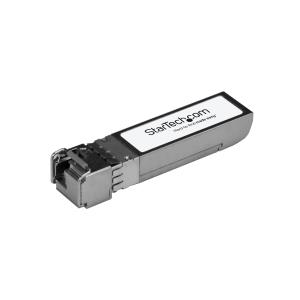

Msa Compliant Sfp+ Transceiver Module - 10gbase-bx (downstream)
Brand:
STARTECH.COM
Part Number:
SFP-10GB-BX-D-STA-ST
Stock:
£17.29
(Excl VAT)
£20.74
(incl. VAT)
| Introduction | |
|---|---|
| 10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty The SFP-10GB-BX-D-STA-ST is a MSA compliant downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-U-STA-ST. They are designed, programmed and tested to work with 10GBase-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling. Technical Specifications: Wavelength: 1330nmTx/1270nmRx Maximum Data Transfer Rate: 10Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) Power Consumption: < 1.3W DDM: Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - Delivers reliable 10 GbE connections for 10GBase-BX compliant networks - StarTech.com SFP modules are backed by a lifetime warranty - Pairs with SFP-10GB-BX-U-STA-ST |
|
| Weight & dimensions | |
| Weight | 24 g |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Y |
| Multi-mode fiber (MMF) supported | N |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-D |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 646156559 h |
| Brand compatibility | MSA Compliant |
| Certification | CE, FCC, UL |
| Power | |
| Power consumption (typical) | 1.3 W |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
No options for this product
