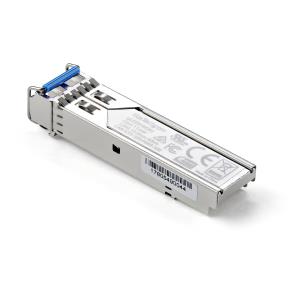

1000base-ex Sfpmsa Compliant 1g Sfp Sm Lc 40 Km (24.8 Mi)
Brand:
STARTECH.COM
Part Number:
SFP1000EXST
Stock:
£50.57
(Excl VAT)
£60.69
(incl. VAT)
| Introduction | |
|---|---|
| 1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty The SFP1000EXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-EX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling. Technical Specifications: Wavelength: 1310nm Maximum Data Transfer Rate: 1.25 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 40 km (24.8 mi) Power Consumption: Less than 1 Watt DDM: Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity - TECHNICAL SPECS: 1000BASE-EX - 1Gbps |
|
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | EX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Wavelength-division multiplexing (WDM) | N |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Y |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 16 mm |
| Depth | 59 mm |
| Height | 13 mm |
| Weight | 18 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 116 mm |
| Package height | 32 mm |
| Package weight | 47 g |
| Logistics data | |
| Master (outer) case width | 193 mm |
| Master (outer) case length | 308 mm |
| Master (outer) case height | 164 mm |
| Products per master (outer) case | 20 pc(s) |
