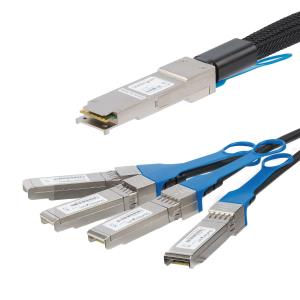

Qsfp+ Breakout Cable - Msa Compliant - Qsfp+ To 4 Sfp+ 2m
Brand:
STARTECH.COM
Part Number:
QSFP4SFPPC2M
Stock:
£35.78
(Excl VAT)
£42.93
(incl. VAT)
| Introduction | |
|---|---|
| Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty The QSFP4SFPPC2M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions. At 2 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies.?It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices. StarTech.com SFP Cables All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules - TECHNICAL SPECS: 2m (6.6ft) - 40 Gbps |
|
| Features | |
| InfiniBand protocol | Yes |
| Cable length | 2 m |
| Connector 1 | QSFP+ |
| Connector 2 | 4x SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | QSFP+ |
| Connector 2 | 4x SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Data transfer rate | 40000 Mbit/s |
| Plug and Play | Y |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 346 g |
| Width | 14 mm |
| Depth | 2000 mm |
| Height | 12 mm |
| Weight | 346 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 252 mm |
| Package depth | 195 mm |
| Package height | 35 mm |
| Package weight | 364 g |
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 325 mm |
| Package height | 30 mm |
| Package weight | 364 g |
| Logistics data | |
| Master (outer) case width | 255 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 10 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Other features | |
| Input impedance | 100 O |
