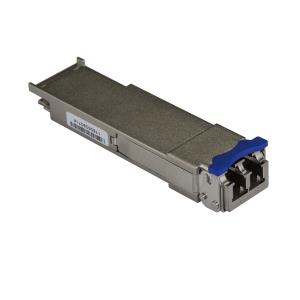

Msa Compliant 40gbase-lr4 Qsfp+ 40g Qsfp+ Module Sm Lc 10
Brand:
STARTECH.COM
Part Number:
QSFP40LR4ST
Stock:
£121.61
(Excl VAT)
£145.93
(incl. VAT)
| Introduction | |
|---|---|
| 40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling. Technical Specifications: Wavelength: 1270nm to 1330nm Maximum Data Transfer Rate: 40 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) MTBF: 1,489,426 hours Power Consumption: Less than 2.5 Watts DDM: Yes This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity - TECHNICAL SPECS: 40GBASE-LR4 - 40Gbps |
|
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Y |
| Multi-mode fiber (MMF) supported | N |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Networking standards | IEEE 802.3ba |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Y |
| Mean time between failures (MTBF) | 1489426 h |
| Certification | CE, FCC, UR, REACH |
| Power | |
| Power consumption (typical) | 2.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18.4 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 40 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 32 mm |
| Package weight | 76 g |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
