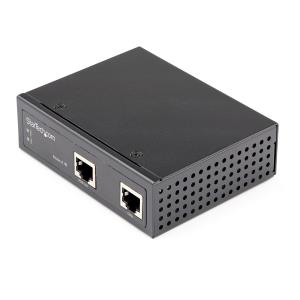

Industrial Gigabit Ethernet Poe Injector 30w 802.3at Poe+ Midspan 48v-56vdc Power Over Ethernet Injector Adapter -40c To +75c
Brand:
STARTECH.COM
Part Number:
POEINJ30W
Stock:
£95.24
(Excl VAT)
£114.29
(incl. VAT)
| Introduction | |
|---|---|
| Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points - TECH SPECS: 1 Gbps - 48V-56VDC input |
|
| Weight & dimensions | |
| Weight | 143 g |
| Packaging data | |
| Package height | 69 mm |
| Package length | 21.1 cm |
| Package width | 162 mm |
| Package depth | 64 mm |
| Package weight | 381 g |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85044095 |
| Sustainability certificates | RoHS |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Y |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| Auto MDI/MDI-X | Y |
| Duplex system | Full |
| Supported network protocols | CSMA/CD |
| Features | |
| Product colour | Black |
| Surge protection | Y |
| Maximum operating distance | 100 m |
| LED indicators | Y |
| Safety | MET (UL) 60950-1, EN60950-1 |
| Power protection features | Overload, Reverse polarity |
| Certification | CE, FCC, UL |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Input voltage | 48 - 56 V |
| Power consumption (max) | 37 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power plug type | Type N |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging content | |
| Quick installation guide | Y |
| Logistics data | |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 10 pc(s) |
