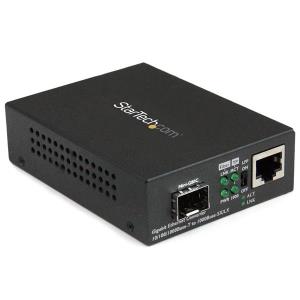

Copper Ethernet To Fiber Media Converter For 10/100/1000 Net
Brand:
STARTECH.COM
Part Number:
MCM1110SFP
Stock:
£45.93
(Excl VAT)
£55.11
(incl. VAT)
| Introduction | |
|---|---|
| Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access. A cost-effective extension and flexible performance The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements. A versatile way to connect different networks Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment. Installation is fast and easy The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option. The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively - Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver - 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network |
|
| Logistics data | |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 311 mm |
| Products per master (outer) case | 20 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T,100Base-TX,10Base-T |
| Converter output interface | 1000Base-LX,1000Base-SX |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Duplex system | Full |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Y |
| Performance | |
| Wavelength-division multiplexing (WDM) | Y |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Design | |
| Internal | N |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, FCC |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | N |
| External power adapter | Y |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 95 mm |
| Height | 26 mm |
| Weight | 185 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 284 mm |
| Package depth | 139 mm |
| Package height | 68 mm |
| Package weight | 544 g |
| Packaging content | |
| Manual | Y |
No options for this product
