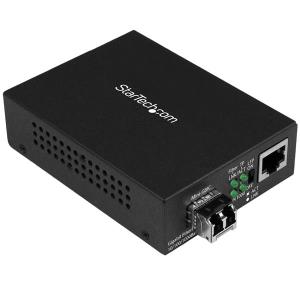

Gigabit Ethernet Fiber Media Converter - Rj45 To 850nm Mm Lc - 550m
Brand:
STARTECH.COM
Part Number:
MCM1110MMLC
Stock:
£70.47
(Excl VAT)
£84.56
(incl. VAT)
| Introduction | |
|---|---|
| Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access. Cost-effective extension and dependable performance The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance. Versatile connections for broad compatibility Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment. The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs. Easy installation and compact convenience The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space. The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively - 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network - Compact standalone design and wall mounting option for easy and convenient installation |
|
| Logistics data | |
| Master (outer) case width | 588 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 20 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T,100Base-TX,10Base-T |
| Converter output interface | 1000Base-LX,1000Base-SX |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Duplex system | Full |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Y |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | N |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
| Design | |
| Internal | N |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, FCC, REACH, TAA |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power over Ethernet (PoE) | N |
| External power adapter | Y |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 201 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 284 mm |
| Package height | 68 mm |
| Package weight | 556 g |
| Packaging content | |
| Manual | Y |
