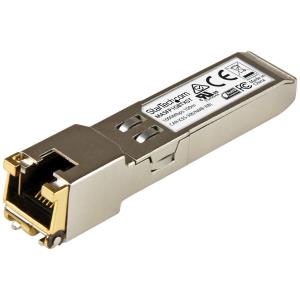

Transceiver Module Gigabit - Rj45 Copper Sfp Ma-sfp-1gb-tx Compatible - 100m
Brand:
STARTECH.COM
Part Number:
MASFP1GBTXST
Stock:
£36.00
(Excl VAT)
£43.20
(incl. VAT)
| Introduction | |
|---|---|
| 10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: Maximum Data Transfer Rate: 1000 Mbps Type: Copper Connection Type: RJ45 Connector Maximum Transfer Distance: 100 m (328 ft) MTBF: 4,655,371 hours Power Consumption: Less than 1.3 Watts Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% compatibility with Cisco Meraki MA-SFP-1GB-TX guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Uses a cost-effective cabling alternative to fiber-optic set ups |
|
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Y |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Duplex system | Full |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Digital Diagnostics Monitoring (DDM) | N |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Y |
| Mean time between failures (MTBF) | 4655371 h |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 51 g |
