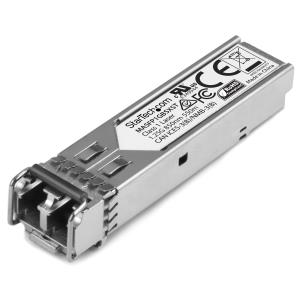

Transceiver Module Gigabit Fiber - 1000base-sx Sfp Ma-sfp-1gb-sx Compatible - Mm Lc - 550m
Brand:
STARTECH.COM
Part Number:
MASFP1GBSXST
Stock:
£22.87
(Excl VAT)
£27.44
(incl. VAT)
| Introduction | |
|---|---|
| 1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft). Technical Specifications: Wavelength: 850nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550m (1804 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% compatibility with Cisco Meraki MA-SFP-1GB-SX guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards |
|
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 3381761 h |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 14 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 119 mm |
| Package depth | 94 mm |
| Package height | 33 mm |
| Package weight | 42 g |
| Logistics data | |
| Master (outer) case width | 257 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 100 pc(s) |
