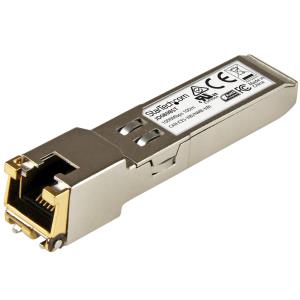

Transceiver Module - Gigabit Rj45 Copper Sfp - Hp Jd089b Compatible - 100m
Brand:
STARTECH.COM
Part Number:
JD089BST
Stock:
£34.44
(Excl VAT)
£41.33
(incl. VAT)
| Introduction | |
|---|---|
| 10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The JD089BST is an HP JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: Maximum Data Transfer Rate: 1000 Mbps Type: Copper Connection Type: RJ45 Connector Maximum Transfer Distance: 100 m (328 ft) MTBF: 4,655,371 hours Power Consumption: Less than 1.3 Watts Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% HPE JD089B COMPATIBLE: Works with HPE switches like 5820AF, 12500, 5500, E4800, E4500 and others - TECHNICAL SPECS: 1000BASE-T - 1Gbps |
|
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 100 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Duplex system | Full |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Digital Diagnostics Monitoring (DDM) | N |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 4655371 h |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 25 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 119 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 54 g |
No options for this product
