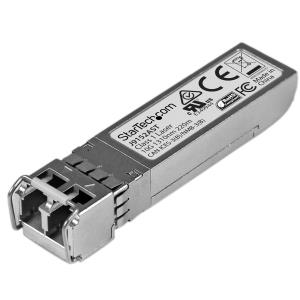

Transceiver Module - 10 Gigabit Fiber Sfp+ - Hp J9152a Compatible - Mm Lc - 220 M (
Brand:
STARTECH.COM
Part Number:
J9152A-ST
Stock:
£19.73
(Excl VAT)
£23.68
(incl. VAT)
| Introduction | |
|---|---|
| 10 Gbps | Multi Mode Fiber | LC | 220 m (721 ft) | Lifetime Warranty The J9152AST is an HP J9152A compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 220 m (721 ft). Technical Specifications: Wavelength: 1310 nm Maximum Data Transfer Rate: 10 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 220 m (721 ft) MTBF: 1,535,075 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% compatibility with HP J9152A guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards |
|
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | LRM |
| Maximum transfer distance | 220 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3aq |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 1535075 h |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 52 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 254 mm |
| Master (outer) case length | 309 mm |
| Master (outer) case height | 202 mm |
| Products per master (outer) case | 4 pc(s) |
