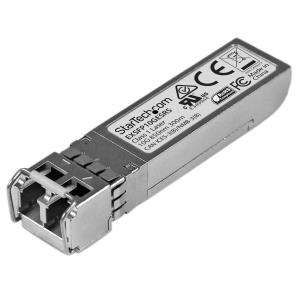

Transceiver Module - 10 Gigabit Fiber Sfp+ Juniper Ex-sfp-10ge-sr - Mm Lc With Ddm - 300 M
Brand:
STARTECH.COM
Part Number:
EXSFP10GESRS
Stock:
£34.03
(Excl VAT)
£40.84
(incl. VAT)
| Introduction | |
|---|---|
| 10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty The EXSFP10GESRS is a Juniper EX-SFP-10GE-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 10 Gbps Type: Multimode Fiber Connection Type: LC Connector Maximum Transfer Distance: 300 m (984 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% JUNIPER EX-SFP-10GE-SR COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 10GbE connectivity - TECHNICAL SPECS: 10GBASE-SR - 10Gbps |
|
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Wavelength-division multiplexing (WDM) | N |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 1967709 h |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 19 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 119 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 47 g |
| Logistics data | |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 345 mm |
| Products per master (outer) case | 100 pc(s) |
