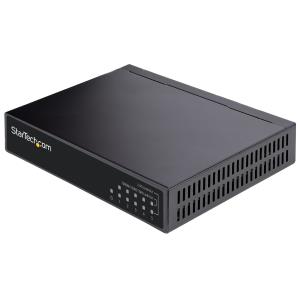

Unmanaged 2.5g Switch 5 Port - 10/100/1000mbps Devices - All-metal - Auto-mdix - 9k Jumbo
Brand:
STARTECH.COM
Part Number:
DS52000
Stock:
£40.54
(Excl VAT)
£48.65
(incl. VAT)
| Introduction | |
|---|---|
| 2.5G switch | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slotThe unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.Enhance your networkThis network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.Secure and versatileThe 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage | |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,1000BASE-TX,2500BASE-T |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Data transmission | |
| Switching capacity | 2.5 Gbit/s |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Y |
| Wall mountable | Y |
| Performance | |
| Maximum cable length | 100 m |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Power | |
| Power source | DC |
| Power supply included | Y |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 12 V |
| Output current | 1 A |
| Power plug type | Type M |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 145 mm |
| Height | 30 mm |
| Weight | 600 g |
| Packaging data | |
| Quick start guide | Y |
| Wall mounting kit | Y |
| AC adapter included | Y |
| Package width | 285 mm |
| Package depth | 135 mm |
| Package height | 70 mm |
| Package weight | 700 g |
| Logistics data | |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 10 pc(s) |
