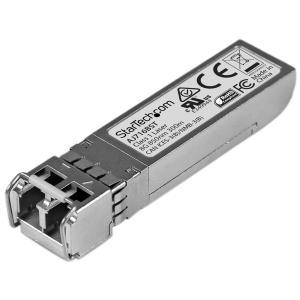

Transceiver Module -8 GB Fibre Channel Short Wave B-series Sfp+ Hp Aj716b Compatible - Mm Lc - 300m
Brand:
STARTECH.COM
Part Number:
AJ716BST
Stock:
£10.22
(Excl VAT)
£12.26
(incl. VAT)
| Introduction | |
|---|---|
| 8 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty The AJ716BST is an HP AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 300 m (984 ft.). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 8 Gbps Type: Multimode Fiber Connection Type: LC Connector Maximum Transfer Distance: 300 m (984 ft.) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% HPE AJ716B COMPATIBLE: Works with HPE switches like SN4000, SN6500, SN8600B, StoreFabric, and others - TECHNICAL SPECS: 8G Fiber Channel SW - 8Gbps |
|
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 8000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 1967709 h |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 18 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
| Logistics data | |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 256 mm |
| Products per master (outer) case | 500 pc(s) |
