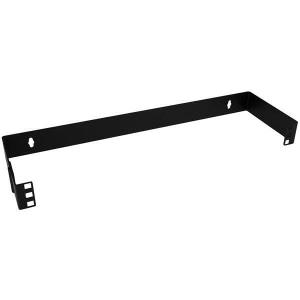

Wallmount Bracket 1u 19 Inch Hinged
Brand:
STARTECH.COM
Part Number:
WALLMOUNTH1
Stock:
£16.04
(Excl VAT)
£19.24
(incl. VAT)
| Introduction | |
|---|---|
| Wall mount a patch panel or network switch while providing hinged access to the back of the device The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 4in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall. The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. Backed by a StarTech.com 2-year warranty. The StarTech.com Advantage - Hinged side panel allows for easy access to the rear of the mounted equipment for easy adjustment |
|
| Weight & dimensions | |
| Weight | 579.5 g |
| Size (imperial) | 48.3 cm (19") |
| Width | 501 mm |
| Depth | 152 mm |
| Height | 44 mm |
| Mounting depth (min) | 15.2 cm |
| Features | |
| Number of fans | 0 fan(s) |
| Type | Wall mounted rack |
| Product colour | Black |
| Maximum weight capacity | 8 kg |
| Rack capacity | 1U |
| Mounting hole shape | Square |
| Frame type | Open |
| Castor wheels | N |
| Compliance industry standards | EIA-310-D |
| Certification | RoHS |
| Logistics data | |
| Master (outer) case width | 1200 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 76 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85389099 |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 515 mm |
| Package height | 60 mm |
| Package weight | 843 g |
| Packaging content | |
| Screws included | Y |
| Number of screws | 6 |
| Nuts included | Y |
| Number of nuts | 4 |
