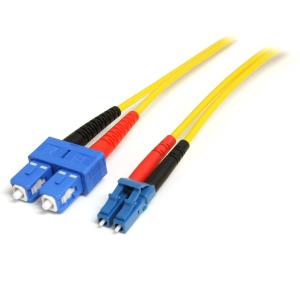

Fiber Optic Cable 9/125 Singlemode Duplex Lc/ Sc 4m
Brand:
STARTECH.COM
Part Number:
SMFIBLCSC4
Stock:
£12.45
(Excl VAT)
£14.94
(incl. VAT)
| Introduction | |
|---|---|
| Provide a high-performance link between fiber network devices The SMFIBLCSC4 4m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications. This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty. The StarTech.com Advantage - Suitable for installations under restrictive building codes, with LSZH rating - Guaranteed reliability |
|
| Features | |
| Fibre optic type | OS1 |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Harmonized System (HS) code | 85447000 |
| Cable length | 4 m |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Full duplex | Y |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 210 mm |
| Package height | 20 mm |
| Package weight | 74 g |
| Logistics data | |
| Master (outer) case width | 402 mm |
| Master (outer) case length | 402 mm |
| Master (outer) case height | 431 mm |
| Products per master (outer) case | 176 pc(s) |
| Technical details | |
| Compliance certificates | RoHS, CE |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 62 g |
