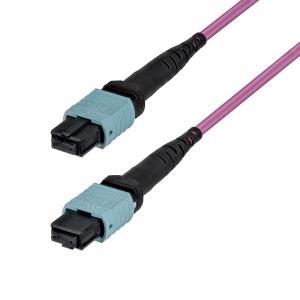

Fiber Optic Cable, 12f Type-b, Om4 Multimode Mtp/pc Female 3m
Brand:
STARTECH.COM
Part Number:
OM4MTP12BOFNP3M
Stock:
£97.87
(Excl VAT)
£117.44
(incl. VAT)
| Introduction | |
|---|---|
| Safely route high-density MTP/MPO fiber cabling in plenum spaces This OM4 MTP®/MPO multimode fiber cable supports high-density 40G and 100G connections between switches and servers, helping reduce cable bulk and simplify routing across data hall racks. The 12-fiber design supports high-speed MTP®/MPO connectivity for multi-fiber network applications, while the Erika Violet jacket follows TIA standards to clearly distinguish OM4 from Aqua OM3 cabling. Engineered for Reliable Multimode Performance Constructed with OM4 50/125µm laser-optimized Corning glass, this cable delivers consistent high-bandwidth transmission for data center and backbone links. Type-B polarity MTP® Elite connector maintains proper transmit/receive alignment for multi-lane connections, ensuring reliable performance without additional crossover components. Each cable is individually tested for signal integrity. Plenum-Rated for In-Building Installation The OFNP plenum-rated jacket meets strict fire and low-smoke requirements, making it suitable for routing through air-handling spaces in commercial and enterprise environments, including data center and in-wall pathways. Deploy in Scalable Fiber Networks Designed for use with structured MTP®/MPO systems, including multi-fiber trunks, cassettes, and patching setups, this cable supports scalability for growing fiber networks and straightforward migration between 10G, 40G, and 100G infrastructure. The 12-fiber format enables high-density connectivity while reducing overall cable count for cleaner, more efficient installations. |
|
| Features | |
| Cable length | 3 m |
| Fibre optic type | OM4 |
| Cable shape | Round |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | PC |
| Product colour | Violet |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Optical fiber non-conductive plenum (OFNP) |
| Polarity | B |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 32 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package height | 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 90 pc(s) |
