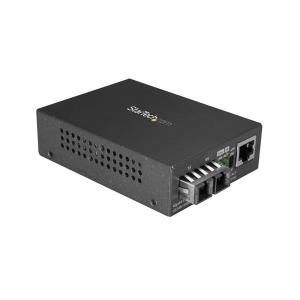

Gigabit Ethernet To Sc Fiber Media Converter - 1000base-sx - Multimode 550m
Brand:
STARTECH.COM
Part Number:
MCMGBSCMM055
Stock:
£56.04
(Excl VAT)
£67.25
(incl. VAT)
| Introduction | |
|---|---|
| Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks. Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks - Provides a cost-effective Ethernet to fiber/copper to fiber link - Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection) |
|
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 100Base-TX,1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Store-and-forward | Y |
| Duplex system | Full |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | N |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
| Design | |
| Internal | N |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, FCC, REACH |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power consumption (typical) | 5 W |
| External power adapter | Y |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 200 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 280 mm |
| Package depth | 133 mm |
| Package height | 66 mm |
| Package weight | 564 g |
| Packaging content | |
| AC adapter included | Y |
| Quick installation guide | Y |
| Logistics data | |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 20 pc(s) |
