Metal Industrial USB To Rs422/rs485 Serial Adapter W/ Isolation 1port
Brand:
STARTECH.COM
Part Number:
ICUSB422IS
Stock:
£106.47
(Excl VAT)
£127.77
(incl. VAT)
| Introduction | |
|---|---|

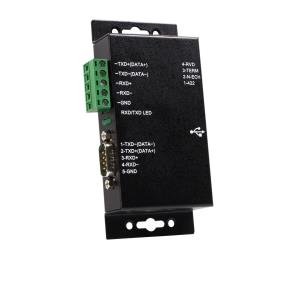

| Add an R422/485 serial port to your laptop or desktop computer through USB The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options - Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment - Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments |
|
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 412 mm |
| Master (outer) case length | 426 mm |
| Master (outer) case height | 278 mm |
| Ports & interfaces | |
| Connector 1 | USB B |
| Connector 2 | RS-422/485 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Cable length | 1.8 m |
| Performance | |
| Product colour | Black |
| Data transfer rate | 0.00088 Gbit/s |
| Compatible operating systems | Windows 8((32/64bit), (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+), Windows Server 2012, 2008 R2, 2003 (32/64), Mac OS 10.x, Linux 2.4.x / 2.6.x |
| Power | |
| Input voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Relative humidity | 5 - 95% |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 118 mm |
| Height | 23 mm |
| Weight | 180 g |
| Packaging data | |
| Package width | 45 mm |
| Package depth | 230 mm |
| Package height | 160 mm |
| Package weight | 390 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Cables included | USB |
