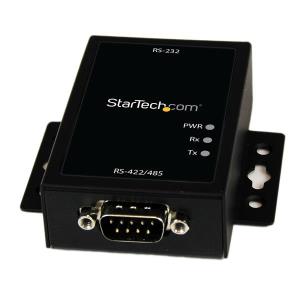

Industrial Rs232 To Rs422/485 Serial Port Converter With 15kv Esd Protection
Brand:
STARTECH.COM
Part Number:
IC232485S
Stock:
£60.06
(Excl VAT)
£72.07
(incl. VAT)
| Introduction | |
|---|---|
| Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps. Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m). Backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage - Protect sensitive industrial equipment with integrated ESD protection - Communicate efficiently with connected devices through high-speed 921Kbps support - Suitable for industrial environments with a rugged, wall-mountable enclosure |
|
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case length | 362 mm |
| Master (outer) case width | 396 mm |
| Master (outer) case height | 264 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Host interface | RS-232 |
| Output interface | RS-232 |
| Connector 1 | DB-9 |
| Connector 2 | DB-9 |
| Connector gender | Male/Female |
| Product colour | Black |
| Maximum cable length | 1200 m |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width | 59 mm |
| Depth | 117 mm |
| Height | 22 mm |
| Weight | 143 g |
| Package width | 208 mm |
| Package depth | 146 mm |
| Package height | 41 mm |
| Package weight | 351 g |
| Power | |
| Input voltage | 110 - 240 V |
| Input current | 0.3 A |
| Material | |
| Housing material | Steel |
| Certificates | |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Manual | Y |
No options for this product
