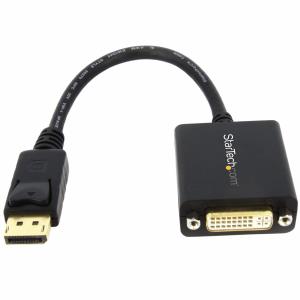

DisplayPort To DVI Video Ad/ Converter Cable
Brand:
STARTECH.COM
Part Number:
DP2DVI2
Stock:
£7.10
(Excl VAT)
£8.52
(incl. VAT)
| Introduction | |
|---|---|
| Connect your DVI monitor to a DisplayPort equipped computer The DP2DVI2 DisplayPort to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers. Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - Simple to use, small form factor converter makes DisplayPort backwards compatible with your DVI-D display - No installation software or drivers required providing a simple plug and play solution - 4 inch cable offers added flexibility in tight spots |
|
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.152 m |
| Connector 1 | Display Port |
| Connector 2 | DVI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP | Y |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| Dual Link DVI | N |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900,1600 x 600,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes | 480p,720p,1080p |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Y |
| Product colour | Black |
| Plug and Play | Y |
| Converter type | Passive video converter |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 43 g |
| Width | 42 mm |
| Depth | 254 mm |
| Height | 17 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 52 g |
| Logistics data | |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 140 pc(s) |
