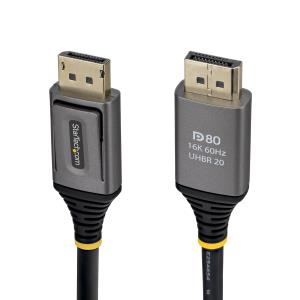

DisplayPort 2.1 Cable 8k 60hz Vesa Certified/dp 2.1/dp80/uhbr2
Brand:
STARTECH.COM
Part Number:
DP21V-1M-DP80-CABLE
Stock:
£24.89
(Excl VAT)
£29.86
(incl. VAT)
| Introduction | |
|---|---|
| Unlock UHBR20 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 10K/8K 60Hz video Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation. Seamless Compatibility For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays. Durable Design This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions. Supported DisplayPort 2.1 Features: This DP80 DisplayPort cable supports the following DP 2.1 features: • UHBR20 supports high refresh rates including uncompressed 5K 144Hz and 4K 240Hz • DSC-compressed video up to 16K 60Hz / 10K 144Hz / 8K 240Hz 4:4:4 8-bit • Uncompressed video resolutions up to 10K 60Hz / 8K 60Hz / 4K 240Hz 4:4:4 8-bit • High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display • High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality • Display Stream Compression (DSC) 1.2a for maximum resolution output • Multi-Stream Transport (MST) for daisy-chaining multiple monitors • 32 Uncompressed Digital Audio Channels • Backward compatible with previous DP versions This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance. |
|
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 2.1 |
| Maximum resolution | 15360 x 8640 pixels |
| Supported graphics resolutions | 10240 x 4320, 7680 x 4320, 5120 x 2880, 4096 x 2160, 15360 x 8640 |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 2.3 |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2a |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Thermoplastic elastomer (TPE) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 80 Gbit/s |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 6.2 mm |
| Weight | 72 g |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 132 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 30 pc(s) |
