| Introduction | |
|---|---|

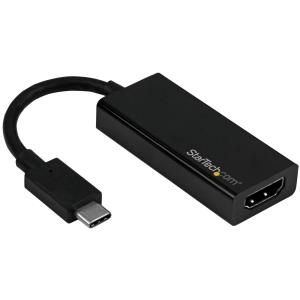

| Connect your MacBook, Chromebook or other USB Type-C laptop to an Ultra HD 60Hz display or projectorThe StarTech.com Advantage | |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733020 |
| Sustainability certificates | RoHS |
| Performance | |
| USB connector form factor | Straight |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | N |
| HDMI output | Y |
| DisplayPort output | N |
| Number of displays supported | 1 |
| HDMI version | 2.0 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Supported video modes | 720p,1080p,2160p |
| Audio output channels | 7.1 channels |
| Chipset | Parade - PS176, STMicroelectronics - STM32F072CBU6 |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | Black |
| Integrated USB cable | Y |
| USB cable length | 0.093 m |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 150 mm |
| Height | 11 mm |
| Weight | 23 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 6 mm |
| Package weight | 32 g |
| Logistics data | |
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 230 mm |
