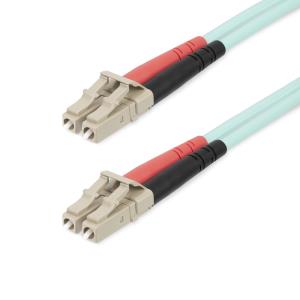

Om4 Fiber Optic Cable 100 GB 50/125 Lszh-lc/lc- Multimode Duplex 25m
Brand:
STARTECH.COM
Part Number:
450FBLCLC25
Stock:
£42.62
(Excl VAT)
£51.15
(incl. VAT)
| Introduction | |
|---|---|
| LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.Engineered for Optimal PerformanceWith laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.Wide CompatibilityThis multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.Flame ResistantHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.The StarTech.com Advantage |
|
| Features | |
| Cable length | 25 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Fibre optic type | OM4 |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850,1300 nm |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Cable diameter | 2.9 mm |
| Bending radius | 6 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 330 mm |
| Package depth | 255 mm |
| Package height | 51 mm |
| Package weight | 342 g |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 450 mm |
| Products per master (outer) case | 32 pc(s) |
