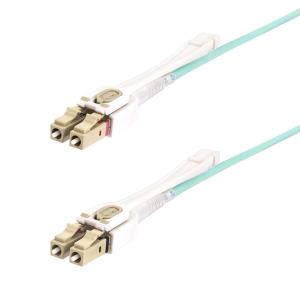

Om4 Fiber Optic Cable Lc To Lc Fiber Patch Cable - Blue 10m
Brand:
STARTECH.COM
Part Number:
450FBLCLC10PP
Stock:
£30.46
(Excl VAT)
£36.55
(incl. VAT)
| Introduction | |
|---|---|
| Optimize fiber patch cabling in high-density patching applications where cables are prone to bendingLC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable enables 40/100G network connections. The push-pull tabs on each connector ensure quick connection and removal, facilitating accurate installation in high connection density environments. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.CompatibilityThis multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.LSZH Cable JacketHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.The StarTech.com Advantage | |
| Features | |
| Cable length | 10 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable type | LOMM |
| Fibre optic type | OM4 |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850,1300 nm |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Cable diameter | 2.9 mm |
| Bending radius | 6 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 230 mm |
| Package depth | 200 mm |
| Package height | 20 mm |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 120 pc(s) |
