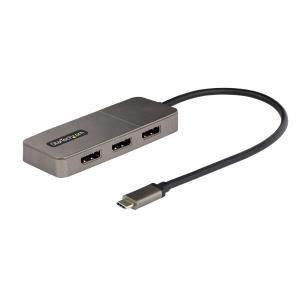

USB-c To Triple Dp Mst Hub - DisplayPort 1.4 4k 60hz
Brand:
STARTECH.COM
Part Number:
MST14CD123DP
Stock:
£30.23
(Excl VAT)
£36.28
(incl. VAT)
| Introduction | |
|---|---|
| Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors This USB-C to DisplayPort MST Hub enables a connection to three DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C enabled host device. IT Pro Performance This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands. Multi-tasking Made Easy This USB-C to DisplayPort video splitter allows you to configure your displays in extended or duplicated mode. Connecting three independent 4K 60Hz displays creates high-performance workstations. This empowers increased multi-tasking across your organization, resulting in increased productivity. Host Connection Output 1 Resolution Output 2 Resolution Output 3 Resolution DisplayPort 1.4 with DSC 4K 60Hz 4K 60Hz 4K 60Hz DisplayPort 1.4 4K 60Hz 4K 30Hz 4K 30Hz DisplayPort 1.2 4K 30Hz 4K 30Hz 1080p 60Hz 4K at 60Hz and HDR Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity. Hassle-Free Setup Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to DisplayPort hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required. This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance. The StarTech.com Advantage |
|
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| High Dynamic Range (HDR) supported | Yes |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 3 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics VMM5330 |
| Data transfer rate (max) | 32.4 Gbit/s |
| Design | |
| Product colour | Grey |
| Integrated USB cable | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac compatibility | No |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 300 mm |
| Height | 14 mm |
| Weight | 52 g |
| USB cable length | 0.3 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 92.4 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
