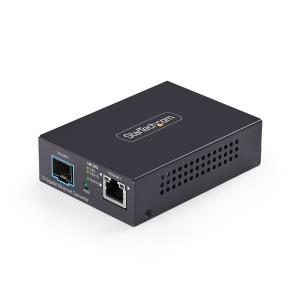

Fiber Media Converter - 10gbe Multi-gigabit Open Sfp+
Brand:
STARTECH.COM
Part Number:
MCM10G6SSFP
Stock:
£313.83
(Excl VAT)
£376.60
(incl. VAT)
| Introduction | |
|---|---|
| Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver. Flexible, High-Speed Copper-to-Fiber Conversion This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments. Versatile Mounting and Deployment Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system. Optimized for Mixed-Speed Networks Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links. Efficient, Compact Design With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments. |
|
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Converter input interface | 10GBase-T |
| Converter output interface | 10GBase-X |
| Networking standards | IEEE 802.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Features | |
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Link, Power |
| Product colour | Black |
| Housing material | Metal |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP+ |
| DC-in jack | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 3.75 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 94 mm |
| Package height | 26 mm |
| Package weight | 500 g |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 133 mm |
| Master (outer) case length | 281 mm |
| Master (outer) case height | 66 mm |
| Products per master (outer) case | 20 pc(s) |
