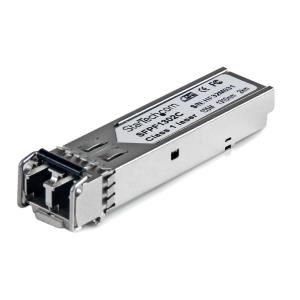

Fiber Sfp Module Transciever 155 mbps 1310nm Mm Lc - Ddm - 2km
Brand:
STARTECH.COM
Part Number:
SFPF1302C
Stock:
£34.87
(Excl VAT)
£41.84
(incl. VAT)
| Introduction | |
|---|---|
| 100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi). Technical Specifications: Wavelength: 1310nm Maximum Data Transfer Rate: 155 Mbps Type: Multimode Fiber Connection Type: LC Connector Maximum Transfer Distance: 2 km (1.2 mi) MTBF: 1,472,572 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% compatibility with Cisco GLC-FE-100FX guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards |
|
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | FX |
| Maximum transfer distance | 2000 m |
| Wavelength | 1300 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Y |
| Wavelength-division multiplexing (WDM) | N |
| Features | |
| Product colour | Silver |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 1472572 h |
| Certification | CE, FCC, UL |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Weight & dimensions | |
| Width | 9 mm |
| Depth | 65 mm |
| Height | 14 mm |
| Weight | 25 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 118 mm |
| Package height | 33 mm |
| Package weight | 95 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 308 mm |
| Master (outer) case height | 201 mm |
| Products per master (outer) case | 36 pc(s) |
