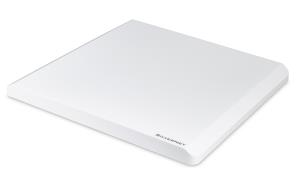

500mbps Up To 60km Link
Brand:
SILVERNET
Part Number:
SIL MAX 500-PCP
Stock:
£1,951.27
(Excl VAT)
£2,341.53
(incl. VAT)
| Introduction | |
|---|---|
| The SIL MAX range is a family of Outdoor Wireless Bridge Links which are designed to be highly secure, ultra long range transmission systems (up to 20KM), attributed to a fully integrated, high power, dual polarised 25dBi antenna. It includes enhanced features such as: MIMO Spatial Multiplexing, Ultrafast Radio Speed, highly secure 256bit AES Traffic Encryption and much more. Available options 100Mbps, 240Mbps, 500Mbps and 1Gbps Full Duplex. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution. |
|
| Data transmission | |
| Maximum data transfer rate | 500 Mbit/s |
| Maximum transfer distance | 60000 m |
| Supported data transfer rates | 95, 240, 500, 1000Mbps |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 23 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Y |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 23 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM,64-QAM,256-QAM,BPSK,QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Indoor range | 60000m |
| Outdoor range | 60000m |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11i,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Static IP | Y |
| Dynamic IP | Y |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES,802.1x RADIUS,SNMP,SNMPv2,SSH |
| MAC address filtering | Y |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Y |
| DHCP client | Y |
| Features | |
| Product type | Network bridge |
| Wall mountable | Y |
| Product colour | White |
| Remote control function | Y |
| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Y |
| Reset button | Y |
| International Protection (IP) code | IP67 |
| Surge protection | Y |
| Quality of Service (QoS) support | Y |
| Network Time Protocol (NTP) client | Y |
| Mean time between failures (MTBF) | 60000 h |
| Country of origin | United Kingdom |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | DC, PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Antenna diameter | 51 cm |
| Width | 370 mm |
| Depth | 370 mm |
| Height | 90 mm |
| Weight | 2.5 kg |
| Packaging content | |
| Grounding | Y |
| PoE+ Injector(s) | Y |
| Mounting bracket(s) included | Y |
| Power supply included | Y |
| Antenna included | Y |
| Quick installation guide | Y |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 290 mm |
| Package height | 480 mm |
| Package weight | 9.15 kg |
| Package type | Box |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
