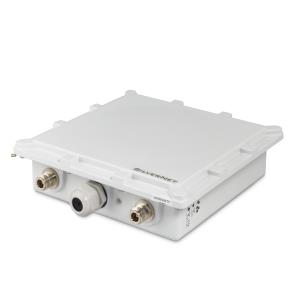

Outdoor Dual Radio Access Point 500mbps On 5GHz 240mbp On 2.4GHz
Brand:
SILVERNET
Part Number:
SIL AP1200
Stock:
£682.95
(Excl VAT)
£819.54
(incl. VAT)
| Introduction | |
|---|---|
| The ACCESS 1200 Dual AP is a highly secure Dual Frequency WiFi access Point. Enhanced features, including, MIMO spatial multiplexing, ultrafast radio speed, gives the ACCESS 1200 Dual AP unparalleled data throughput capabilities of up to 240Mbps Duplex on 802.11n 2.4GHz and up to 500Mbps Duplex on 802.11ac 5GHz frequencies simultaneously. The ACCESS 1200 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range WiFi is required for connecting laptops, tablets or handheld devices. Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software. |
|
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412-2.472, 5.1-5.8 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Full duplex | Yes |
| Duplex mode auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| MDI / DMI-X automatic switchover | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLAN IDs | 4095 |
| STA isolation (same VLAN) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps |
| Security | |
| Security algorithms | 256-bit AES, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Internal RJ-45 ports quantity | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 24-48, 48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power supply | 15.4 W |
| Power plug type | Type G |
| Design | |
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Reset button | Yes |
| LED indicators | LAN, Signal strength |
| Cable length | 100 m |
| Certification | CE, FCC |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna connector type | N-type |
| Number of connectors | 4 |
| Polarization | Dual polarization |
| Performance | |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220 mm |
| Height | 75 mm |
| Weight | 1.6 kg |
| Packaging data | |
| Package width | 307 mm |
| Package depth | 395 mm |
| Package height | 100 mm |
| Package weight | 2.15 kg |
| Package type | Box |
| Packaging content | |
| Number of products included | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Bundled software | SilverView Pro Network Management & Monitoring Software |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
