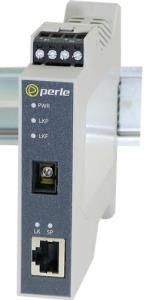

Sr-1110-sc20d Media Converter10/100/1000base-t Singl (05091810)
Brand:
PERLE SYSTEMS
Part Number:
05091810
Stock:
£1,065.94
(Excl VAT)
£1,279.13
(incl. VAT)
| Introduction | |
|---|---|
| Perle SR-1110 DIN Rail Media Converters transparently connect UTP copper to fiber. These rate converting Media Converters provide an economical path to: - extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over gigabit fiber - enable Gigabit speeds across a multimode fiber link up to 2km in length (learn more) - extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber - extend the distance between two copper-based devices or networks - protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants. Some SR-1110 Media Converters are also available with an SFP slot or support for -40°C to +75°C (-40°F to +167°F) extended operating temperatures. Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-1110 Rate Converting Media Converters the smart choice for IT professionals. |
|
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Networking standards | IEEE 802.3 |
| Fiber ethernet cabling technology | 1000BASE-BX-D |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5, Cat6, Cat7 |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Rx power (min) | -22 dBmW |
| Rx power (max) | -3 dBmW |
| Link budget | 14 dB |
| Buffer size | 1000 KB |
| Mean time between failures (MTBF) | 564766 h |
| Features | |
| LED indicators | Yes |
| Product colour | Grey, White |
| Housing material | Plastic |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Terminal block port | Yes |
| Power | |
| Input voltage | 12 - 60 V |
| Power consumption (typical) | 2.16 W |
| Weight & dimensions | |
| Width | 114 mm |
| Depth | 100 mm |
| Height | 22.5 mm |
| Weight | 120 g |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 105 mm |
| Package height | 30 mm |
| Package weight | 170 g |
