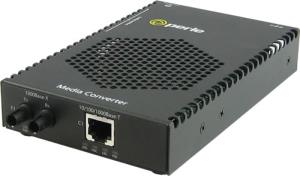

S1110pps2st70 101001000 Gigabit Ethernet Standalone Media Rate C (05081091)
Brand:
PERLE SYSTEMS
Part Number:
05081091
Stock:
£2,848.30
(Excl VAT)
£3,417.96
(incl. VAT)
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T, 100Base-T, 10Base-T |
| Networking standards | IEEE 802.3u, IEEE 802.3af |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Fiber ethernet cabling technology | 1000BASE-ZX |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| VLAN support | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5 |
| Performance | |
| Maximum transfer distance | 70000 m |
| Wavelength | 1550 nm |
| Fiber mode structure | Single-mode |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 5 dBmW |
| Rx power (min) | -23 dBmW |
| Rx power (max) | -3 dBmW |
| Features | |
| Plug and Play | Yes |
| LED indicators | Power, Activity, Status, Speed, Error |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Power protection features | Over current |
| Internal | No |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | ST |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Input voltage | 52 - 57 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Power supply input voltage | 100 - 240 V |
| Total Power over Ethernet (PoE) budget | 30 W |
| External power adapter | Yes |
| Power plug type | Type G |
| Sustainability | |
| Doesn't contain | Lead, Mercury, Cadmium |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 150 mm |
| Height | 26 mm |
| Weight | 450 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Packaging content | |
| AC adapter included | Yes |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 300 mm |
| Package height | 70 mm |
| Package weight | 1.4 kg |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | REACH, RoHS, National Defense Authorization Act (NDAA), Federal Communications Commission (FCC), UL, CE |
| Logistics data | |
| Export Control Classification Number (ECCN) | 5A991 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| MAC address table | 1024 entries |
| UNSPSC-code | 43201553 |
