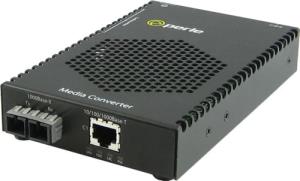

S1110ps2sc10 101001000 Gigabit Ethernet Standalone Media Rate C (05080041)
Brand:
PERLE SYSTEMS
Part Number:
05080041
Stock:
£788.30
(Excl VAT)
£945.96
(incl. VAT)
| Introduction | |
|---|---|
| S-1110P-S2SC10 - 10/100/1000 Gigabit Ethernet Stand-Alone Media Rate Converter w/ PoE PSE. 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX/LH 1310 nm single mode (SC) [10 km/6.2 miles] or multimode (SC) [550 m/1804 ft.] using a mode conditioning adapter. Includes AC Power Adapter |
|
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-LX, 1000Base-T |
| Networking standards | IEEE 802.3u, IEEE 802.3bt |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Duplex system | Full, Half |
| Cable types supported | Cat5 |
| Performance | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 95 mm |
| Height | 26 mm |
| Weight | 450 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
