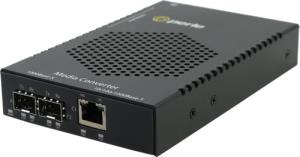

S-1110hp-dsfp-xt Media Convertr10/100/1000 2x Sfp Slots (05079320)
Brand:
PERLE SYSTEMS
Part Number:
05079320
Stock:
£1,049.88
(Excl VAT)
£1,259.86
(incl. VAT)
| Introduction | |
|---|---|
| Perle S-1110HP-SFP-XT Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices. Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. With an operating temperature -40°F to +167°F (-40°C to +75°C) this Hi-PoE Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers, sensors and tracking devices. Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD’s per converter Learn more about PoE And, with one or two empty transceiver ports on the S-1110HP-SFP Fiber Media Converter, flexible network configurations requirements can be meet using a variety of transceivers supplied by Perle transceivers supplied by Perle, Cisco, or other manufacturers of MSA compliant SFPs. extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 100/1000Base-X fiber extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber. Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP-SFP-XT PoE Media Converters the smart choice for IT professionals. |
|
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Performance | |
| Maximum transfer distance | 100 m |
| Buffer size | 1000 KB |
| Mean time between failures (MTBF) | 324134 h |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Power | |
| Input voltage | 52 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 150 mm |
| Height | 26 mm |
| Weight | 400 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 560 g |
