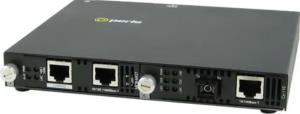

Smi110m1sc2d 10100 Fast Ethernet Ip Managed Standalone M (05071221)
Brand:
PERLE SYSTEMS
Part Number:
05071221
Stock:
£743.85
(Excl VAT)
£892.62
(incl. VAT)
| Introduction | |
|---|---|
| Perle’s advanced line of Managed 10/100 Ethernet Media Converters, transparently connect UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links. Perle 10/100 Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed 10/100 Ethernet Converters the smart choice for IT professionals. SMI-110-M1SC2D - 10/100 Fast Ethernet IP Managed Media and Rate Converter. 10/100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-BX 1550nm TX / 1310nm RX single fiber multimode (SC) [2 km/1.2 miles] |
|
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX, 10Base-TX |
| Networking standards | IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5 |
| Performance | |
| Maximum transfer distance | 2000 m |
| Wavelength | 1550 nm |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 248259 h |
| Features | |
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Yes |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 4.1 W |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 145 mm |
| Height | 23 mm |
| Weight | 722 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 1.2 kg |
| Certificates | |
| Certification | Reach, RoHS, WEEE |
No options for this product
