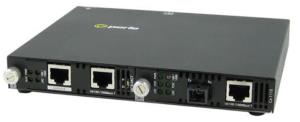

Smi1110m2lc05 101001000 Gigabit Ethernet Ip Managed Standalone M (05070621)
Brand:
PERLE SYSTEMS
Part Number:
05070621
Stock:
£801.55
(Excl VAT)
£961.86
(incl. VAT)
| Introduction | |
|---|---|
| Perle’s advanced line of Managed Gigabit Rate Converting Media Converters, provides transparent and reliable 10/100/1000 ethernet to fiber connections. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links. Perle 10/100/1000 Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed 10/100/1000 Ethernet Converters the smart choice for IT professionals. |
|
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T, 100Base-T, 10Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.3u, IEEE 802.1p |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-SX |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5 |
| Quality of Service (QoS) support | Yes |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
| Buffer size | 1000 KB |
| Mean time between failures (MTBF) | 238087 h |
| Features | |
| Internal | No |
| Reset button | Yes |
| LED indicators | Power, Activity, Speed, Error, Alarm |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Power | |
| Input voltage | 12 V |
| Input current | 0.34 A |
| Power consumption (typical) | 4.1 W |
| Power supply input voltage | 100 - 240 V |
| Power plug type | Type G |
| Sustainability | |
| Doesn't contain | Lead, Mercury, Cadmium |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 145 mm |
| Height | 23 mm |
| Weight | 722 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 70 mm |
| Package height | 200 mm |
| Package weight | 1.2 kg |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, RoHS, UL, Federal Communications Commission (FCC) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Export Control Classification Number (ECCN) | 5A992 |
| Other features | |
| MAC address table | 1024 entries |
| Full duplex | Yes |
| UNSPSC-code | 43201553 |
