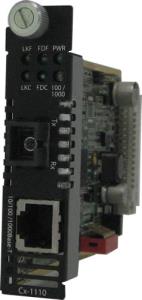

Cm-1110-m1sc05u Media Convertermanaged 100/1000 Mm 1310/15505k
Brand:
PERLE SYSTEMS
Part Number:
05042870
Stock:
£520.52
(Excl VAT)
£624.63
(incl. VAT)
| Introduction | |
|---|---|
| CM-1110-M1SC05U - 10/100/1000 Gigabit Ethernet Media and Rate Converter Managed Module. 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASEBX 1310nm TX / 1550nm RX single strand fiber, multimode (SC) [550 m/1804 ft]. Managed or unmanaged operation. A Fiber to Ethernet Media Converter designed to be used with the Perle Media Converter Chassis. | |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter output interface | 1000Base-BXU |
| Networking standards | IEEE 802.3u |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 500 m |
| Wavelength | 1550 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -10 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
| Sensitivity | 7 dBmW |
| Buffer size | 125 KB |
| Mean time between failures (MTBF) | 598 h |
| Design | |
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Safety | UL 60950-1, EN60950, CE, EN 60825-1:2007 |
| Power | |
| Power consumption (max) | 2.1 W |
| Weight & dimensions | |
| Width | 38 mm |
| Depth | 203 mm |
| Height | 152 mm |
| Weight | 330 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
No options for this product
