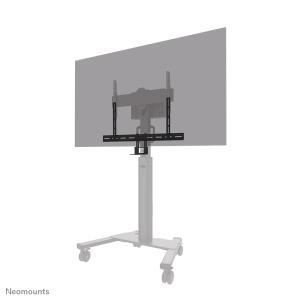

Neomounts Av50-500bl Ptz/uc Camera Shelf Kit 43-110in - Vesa - Max 5 Kg - Universal
Brand:
NEOMOUNTS
Part Number:
AV50-500BL
Stock:
£51.37
(Excl VAT)
£61.64
(incl. VAT)
| Introduction | |
|---|---|
| The Neomounts AV50-500BL is a universal PTZ/UC camera shelf kit designed for 43" displays and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 5 kg and can be installed either above or below the display. Both the camera support and the backplate brackets are height-adjustable for maximum flexibility. Compatible with virtually all* PTZ/UC cameras, the AV50-500BL guarantees broad applicability. The camera mounting allows both width and height variation, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for VESA orientated wall, floor, desk, and ceiling mounts. Despite its versatility, installation is simple and precise thanks to ruler-guided alignment. * The Neomounts AV50-500BL kit is truly universal, compatible with any PTZ/UC camera that fits within the bracket?s range (see line drawing). In addition, it is specifically designed for the following models: - Bose Professional VB-S - Poly Studio R30/X30/X32 and Studio V12 - Logitech Meetup 2 and Rally Camera - Yealink MeetingBar A30, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600 - Maxhub UC S05/S07/S10/S10 Pro/S15 - Predia Connect Camera For detailed compatibility with specific models or mounting sizes, please refer to the online manual. |
|
| Features | |
| Product type | Camera mount |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.79 m (110") |
| Maximum weight capacity | 5 kg |
| Number of displays supported | 1 |
| Height adjustment range | 0 - 55 mm |
| Product colour | Black |
| Housing material | Steel |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Packaging data | |
| Package weight | 5.8 kg |
| Package width | 175 mm |
| Package depth | 958 mm |
| Package height | 86 mm |
| Logistics data | |
| Products per pallet (EU) | 48 pc(s) |
| Master (outer) case net weight | 13.5 kg |
| Master (outer) case width | 276 mm |
| Master (outer) case length | 978 mm |
| Master (outer) case height | 195 mm |
| Master (outer) case gross weight | 17.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Weight & dimensions | |
| Weight | 4.5 kg |
| Width | 900 mm |
| Depth | 158 mm |
| Height | 552 mm |
| Technical details | |
| Warranty period | 5 year(s) |
| Country of origin | China |
