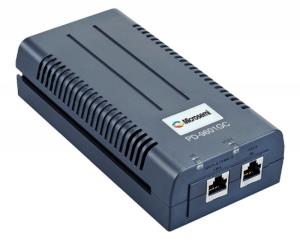

Midspan 1-Port IEEE802.3BT Legacy Mids 90W 10/100/1000 BaseT AC UK
Brand:
MICROCHIP TECHNOLOGY
Part Number:
PD-9601GC/AC-UK
Stock:
£92.03
(Excl VAT)
£110.43
(incl. VAT)
| Introduction | |
|---|---|
| The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. The midspan is IEEE 802.3bt type 4 and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points, powering 10/100/1000Base-T devices. With the midspan’s plug and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network. | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3bt |
| Features | |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Certification | CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage | 55 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1.35 A |
| Power over Ethernet (PoE) power per port | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -304.8 - 2000 m |
| Weight & dimensions | |
| Width | 166.4 mm |
| Depth | 88 mm |
| Height | 43.9 mm |
| Weight | 660 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
