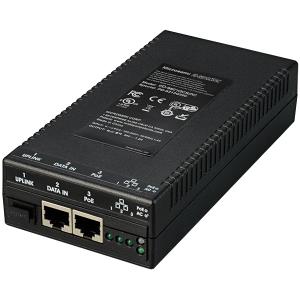

1 port 60W IEEE 802.3bt Type-3 PoE media converter UK power cord
Brand:
MICROCHIP TECHNOLOGY
Part Number:
PD-9501GCS/AC-UK
Stock:
£234.47
(Excl VAT)
£281.36
(incl. VAT)
| Introduction | |
|---|---|
| Our PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port. This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device. The PD-9501GCS is IEE 802.3bt Type 3-compliant and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3bt-compliant loads. |
|
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Features | |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 150000 h |
| Certification | CE, WEEE FCC 15, B, EN 55032 B EN 55024 VCCI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage | 54 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1.4 A |
| Power over Ethernet (PoE) power per port | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 80 mm |
| Height | 36 mm |
| Weight | 580 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
