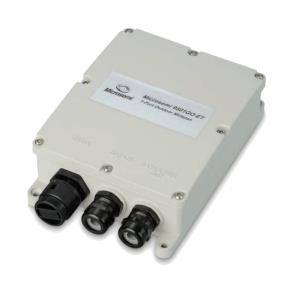

Single-Port, IP67, IEEE 802.3bt Type3, 60W Outdoor midspan
Brand:
MICROCHIP TECHNOLOGY
Part Number:
PD-9501GCO/AC
Stock:
£200.81
(Excl VAT)
£240.97
(incl. VAT)
| Introduction | |
|---|---|
| Microsemi's PD-9501GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3at-compliant solution for outdoor installations, guaranteeing 60 W of power and ensuring safe and reliable operation of any standard PoE data terminal in an outdoor environment. It allows wireless LAN access points, security network cameras, and other IP terminals to receive both power and data over standard Ethernet cables while leaving the network infrastructure completely unaltered. The PD-9501GO-ET also offers surge protection for both the AC and PoE ports, ensuring the indoor equipment is protected from outdoor surges. | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Y |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Features | |
| Product colour | Grey |
| Wall mountable | Y |
| Surge protection | Y |
| LED indicators | N |
| Certification | FCC Part 15, Class B EN 55032 Class B (Emissions) EN 55024, EN61000-4-5 Class 5 (6 kV CM/DM) VCCI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage | 54 V |
| Output power | 60 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 170 mm |
| Height | 60 mm |
| Weight | 1.4 kg |
