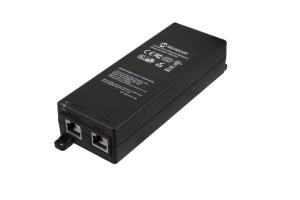

Single-Port, 10 Gbps, IEEE 802.3bt Type3 60W, Indoor PoE Midspan EU
Brand:
MICROCHIP TECHNOLOGY
Part Number:
PD-9501-10GC/AC-EU
Stock:
£90.51
(Excl VAT)
£108.61
(incl. VAT)
| Introduction | |
|---|---|
| Summary The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones. The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points. |
|
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Features | |
| Pin assignment & polarity | 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+) |
| Certification | FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI, UL/EN/IEC 60950-1 (Ed.2) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage | 55 V |
| Input voltage | 100-240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Power over Ethernet (PoE) power per port | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 176 mm |
| Height | 38.3 mm |
| Weight | 330 g |
| Technical details | |
| Sustainability certificates | RoHS, WEEE |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
